Creating an adjustable countdown timer with an Arduino using an I2C LCD, rotary encoder, pushbuttons with interrupt handling, two status LEDs, and an RTC module to control a relay requires careful management of interrupts for responsive button handling while maintaining accurate timing. It is an advanced project. The person going to create it requires to know few theories and previous work experience I2C LCD, interrupt and RTC module.

Here are related theories which can help you:

  1. How Interrupt Works
  2. Understanding Arduino Interrupts
  3. Read a Pushbutton with Arduino with Interrupts and Debounce
  4. What is I²C Protocol? Relevance of I²C in Arduino

For this project, we can not give you a Tinkercad simulation since RTC module, rotary encoder etc are absent in Tinkercad. The wiring is quite easy if you look at the sketch.

Advertisem*nt

---

Components Needed For This Project

  • Arduino board (e.g., Arduino Uno)
  • I2C LCD display (16×2 or 20×4)
  • Rotary encoder with push button
  • Pushbuttons (for start/stop/reset)
  • Two LEDs (for indicating timer running and countdown complete)
  • RTC module (e.g., DS3231)
  • Relay module (if controlling external devices)
  • Breadboard
  • Few jumper wires
  • A computer running Arduino IDE

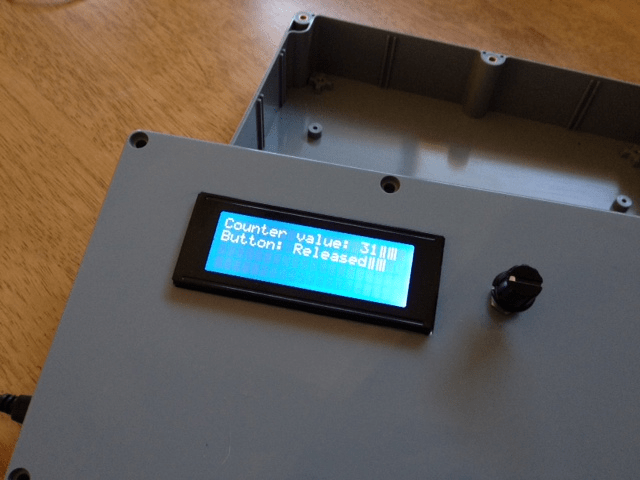

Arduino Adjustable Countdown Timer With I2S LCD, Rotary Encoder and RTC module (1)


Suggested final design.
Image is from
https://forum.arduino.cc/t/ardunio-8x-relay-timer-with-i2c-20×4-lcd-rotary-encoder/77097

Libraries Required

Ensure you have the following libraries installed via the Arduino Library Manager:

  • LiquidCrystal_I2C (for I2C LCD)
  • RTClib (for RTC module)
  • Encoder (for rotary encoder)

Required Code/Sketch

Vim

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

// under GNU GPL 3.0 License

// Code written by Abhishek Ghosh

// Website: https://thecustomizewindows.com

//

//

#include <Wire.h>

#include <LiquidCrystal_I2C.h>

#include <RTClib.h>

#include <Encoder.h>

// Define pins for rotary encoder

#define ENCODER_PIN1 A0

#define ENCODER_PIN2 A1

#define BUTTON_PIN A2

// Define pins for pushbuttons using interrupts

#define START_STOP_PIN 2

#define RESET_PIN 3

// Define pins for LEDs

#define LED_RUNNING_PIN 4

#define LED_COMPLETE_PIN 5

// Initialize objects

LiquidCrystal_I2C lcd(0x3F, 16, 2);// Adjust address and size as per your LCD

RTC_DS3231 rtc;

Encoder encoder(ENCODER_PIN1, ENCODER_PIN2);

volatile bool startStopPressed = false;

volatile bool resetPressed = false;

// Timer variables

int countdownMinutes = 0;

unsigned long countdownEndTime = 0;

bool timerRunning = false;

void setup() {

lcd.begin();

lcd.backlight();

pinMode(BUTTON_PIN, INPUT_PULLUP);

pinMode(START_STOP_PIN, INPUT_PULLUP);

pinMode(RESET_PIN, INPUT_PULLUP);

pinMode(LED_RUNNING_PIN, OUTPUT);

pinMode(LED_COMPLETE_PIN, OUTPUT);

attachInterrupt(digitalPinToInterrupt(START_STOP_PIN), startStopInterrupt, FALLING);

attachInterrupt(digitalPinToInterrupt(RESET_PIN), resetInterrupt, FALLING);

// Initialize RTC

if (!rtc.begin()) {

lcd.print("RTC not found!");

while (1);

}

}

void loop() {

// Read rotary encoder

long encoderValue = encoder.read();

if (encoderValue > 0) {

countdownMinutes++;

} else if (encoderValue < 0 && countdownMinutes > 0) {

countdownMinutes--;

}

// Check if start/stop button was pressed

if (startStopPressed) {

startStopPressed = false;

if (!timerRunning) {

startTimer();

} else {

stopTimer();

}

}

// Check if reset button was pressed

if (resetPressed) {

resetPressed = false;

resetTimer();

}

// Update LCD display

updateDisplay();

// Check if timer has ended

if (timerRunning && millis() >= countdownEndTime) {

timerRunning = false;

digitalWrite(LED_COMPLETE_PIN, HIGH);

// Activate relay or perform any action when timer completes (optional)

}

}

void startStopInterrupt() {

startStopPressed = true;

}

void resetInterrupt() {

resetPressed = true;

}

void startTimer() {

countdownEndTime = millis() + (countdownMinutes * 60000); // Convert minutes to milliseconds

timerRunning = true;

digitalWrite(LED_RUNNING_PIN, HIGH);

digitalWrite(LED_COMPLETE_PIN, LOW);

}

void stopTimer() {

timerRunning = false;

digitalWrite(LED_RUNNING_PIN, LOW);

}

void resetTimer() {

countdownMinutes = 0;

stopTimer();

digitalWrite(LED_COMPLETE_PIN, LOW);

}

void updateDisplay() {

lcd.clear();

lcd.setCursor(0, 0);

lcd.print("Set Timer: ");

lcd.print(countdownMinutes);

lcd.print(" min");

lcd.setCursor(0, 1);

lcd.print("Status: ");

if (timerRunning) {

lcd.print("Running");

} else {

lcd.print("Stopped");

}

}

Setup and Initialization:

Initializes all necessary components including the LCD, RTC, rotary encoder, pushbuttons, and LEDs. The interrupt service routines (ISRs) are attached to the start/stop and reset buttons to handle their actions immediately upon press.

Loop Function:

Reads input from the rotary encoder to adjust the countdown time.
Checks flags (startStopPressed and resetPressed) set by the interrupt service routines to execute corresponding functions (startTimer(), stopTimer(), resetTimer()).
Updates the LCD display with current timer status.

Interrupt Service Routines (ISRs):

startStopInterrupt(): Sets startStopPressed flag when the start/stop button is pressed.
resetInterrupt(): Sets resetPressed flag when the reset button is pressed.

Timer Control Functions:

startTimer(): Calculates the end time of the countdown based on the set minutes and starts the countdown.
stopTimer(): Stops the countdown timer.
resetTimer(): Resets the countdown timer and stops it.

Display Update: Updates the LCD display to show the current countdown time and timer status (running or stopped).
Countdown Completion: When the countdown timer reaches zero (millis() reaches countdownEndTime), the timerRunning flag is set to false. Optionally, an action can be performed such as lighting up an LED (LED_COMPLETE_PIN) or triggering a relay.

Ensure the interrupt pins (START_STOP_PIN and RESET_PIN) are connected to the correct pins on your Arduino board and configured correctly in attachInterrupt.

Use volatile variables (startStopPressed and resetPressed) for flags accessed within both the main loop and interrupt service routines to ensure proper handling of shared data.

Customize LCD initialization (LiquidCrystal_I2C lcd(0x3F, 16, 2);) based on your LCD module’s address and size.

Extend functionality by adding more buttons for additional features like pause, resume, etc.
Incorporate the RTC module to synchronize the timer with real-time if precise timing is critical.

This sketch provides a foundation for building an adjustable countdown timer using interrupts for responsive button handling while maintaining accurate timing and display updates on an I2C LCD. Adjust and expand it further based on your specific project requirements and hardware setup.
